4500rpm Grinding Wheel CNC Centerless Grinder For Multipurpose

  • 1
  • 2
  • 3

Brand Name : HOTMAN

Model Number : FX-20CNC

Certification : CE

Place of Origin : China

MOQ : 1

Price : RMB1/SET

Payment Terms : T/T

Supply Ability : 30

Delivery Time : 60DAYS

Packaging Details : WOODEN BOOX

Grinding Wheel Diameter : 200mm

Grinding Wheel Motor Power : 2.2KW

Grinding Wheel Speed : 4500rpm

Grinding Wheel Spindle Feed Rate : 0.1-3mm/min

Grinding Wheel Spindle Max. Load : 50Kg

Grinding Wheel Spindle Max. Speed : 6000rpm

Grinding Wheel Spindle Max. Thrust : 50N

Grinding Wheel Spindle Max. Torque : 30Nm

Grinding Wheel Spindle Motor Power : 1.5KW

Grinding Wheel Spindle Rapid Feed Rate : 10mm/min

Grinding Wheel Spindle Speed : 1400rpm

Grinding Wheel Spindle Travel : 50mm

Grinding Wheel Width : 20mm

Contact Now

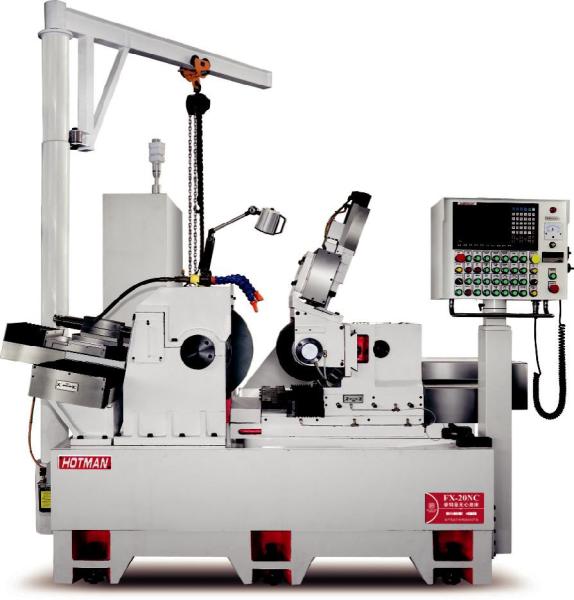

Centerless Grinding Machine FX-20CNC

Adjusting wheel spindle drive adopts servo motor, speed control 0-250rpm(digital control) can be arbitrarily set speed,
adjust to the best linear speed, when adjusting wheel diameter changes still can maintain the same linear speed, grinding
out the best product.
The servo motor is cleverly designed and installed on the adjusting wheel box and directly driven by the synchronous belt.
It can hit the tilt Angle with the adjusting wheel at the same time during grinding to ensure that the two belt wheels are
always parallel. It overcomes many adverse effects caused by inertia loss and chain Angle caused by chain multi-segment
transmission of old centerless grinder. And eliminates the need to constantly change chains and zipper springs.
The circuit of the whole equipment adopts Beijing Schneider circuit system, beautiful and durable, good operation. Increase
the height of the electric box, and equipped with air conditioning cooling device, convenient operation at the same time, more
conducive to the circuit system heat dissipation.
Hotman secondary development of numerical control system, Chinese man-machine dialogue interface, easy to learn;
With corresponding brand servo motor, one axis automatic feed, two axis CNC molding sand repair, good compatibility,
accurate feed.

1.Technical parameter:

Project Unit Model:FX-20CNC-3

Processing range of standard models (diameter)

 mm Φ 1-80

Grinding wheel size (OD * W * OD)

 mm Φ510*(205-305)*Φ254

Adjusting wheel size (OD * W * OD)

 mm Φ305*(205-305)*Φ127
Grinding wheel speed RPM 1470

Linear speed of grinding wheel

 m/s 45
Adjusting wheel speed RPM 0-250

The grinding wheel drives the motor

 KW 18.5

Adjusting wheel servo motor

 KW 3
Feed servo motor KW 3.9

Sand repair servo motor

 KW 1.0*2

The hydraulic pump drives the motor

 KW 0.75

The cooling pump drives the motor

 KW 0.75

Adjusting wheel feed hand wheel

 mm 3.5/ RPM 0.05/ scale

Adjusting wheel fine tuning hand wheel

 mm 0.1/ to 0.001/ scale

Worktable feed hand wheel

 mm The servo feed minimum set quantity is 0.0005mm

Worktable micro adjustment hand wheel

 mm 0.2/ RPM 0.001/scale
Trim feed hand wheel mm 2mm/RPM 0.01mm/scale
Adjust wheel tilt Angle Deg +5°～-3°

Adjust the rotation Angle

 Deg ±5°

Machine size (length * width * height)

 mm 2800×2100×2000
Mechanical weight KG about 4500
